Manchester, NH, homeowners are no strangers to foundation problems. Seasonal temperature changes, snowmelt, groundwater, and shifting soil can place stress on concrete walls, causing cracks to form or existing damage to worsen.
For one local homeowner, the concern was a displaced and slightly wide foundation wall crack that had already been patched once. When the previous repair failed to hold, they contacted CrackX for a more dependable solution. After evaluating the damage, our team recommended a structural foundation wall crack repair using injection and pinning techniques.
Identifying the Problem

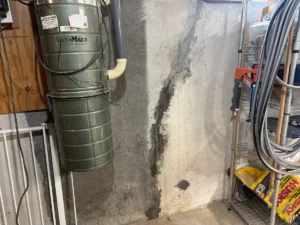

The homeowner initially attempted to address the foundation crack with a surface patch. Although patching may temporarily cover visible damage, it does not always reach the full depth of the crack or stabilize sections of concrete that have shifted out of alignment.
Over time, the patched area reopened. This left the foundation vulnerable to water intrusion and raised concerns about continued movement.
During the inspection, the CrackX team identified several important conditions:
- The crack was wider than a typical hairline crack.
- Portions of the concrete were slightly displaced.
- The previous surface patch had failed.
- The opening created a potential pathway for water to enter the basement.
- A standard cosmetic repair would not provide sufficient reinforcement.
Because the crack showed displacement and had already reopened after an earlier repair, the homeowner wanted a solution that addressed both water intrusion and the risk of future cracking.
Crafting the Right Solution
For this Manchester foundation repair project, CrackX used a structural approach that combined crack injection with pinning.
First, the team removed loose material and prepared the damaged area. Proper surface preparation is essential because old patching products, dust, and deteriorated concrete can interfere with the performance of a new repair.
Injection ports were then installed at intervals along the crack. These ports allowed the repair material to be introduced directly into the opening, filling the crack beyond the visible surface. A surface seal was applied around the ports to contain the injection material and direct it through the damaged section of the wall.
Because the crack was displaced and slightly wide, injection alone was not the complete solution. The technicians also installed structural pins across the crack. Pinning helps connect and reinforce the concrete on both sides of the damaged area, reducing the chance that the crack will separate or reopen.
Together, these two methods provided complementary protection:
- The injection filled and sealed the crack to help stop water intrusion.
- The structural pins reinforced the displaced sections of the foundation wall.
- The surface seal completed the repair and protected the treated area.
This comprehensive approach addressed the failed patch and the conditions that made a stronger repair necessary.

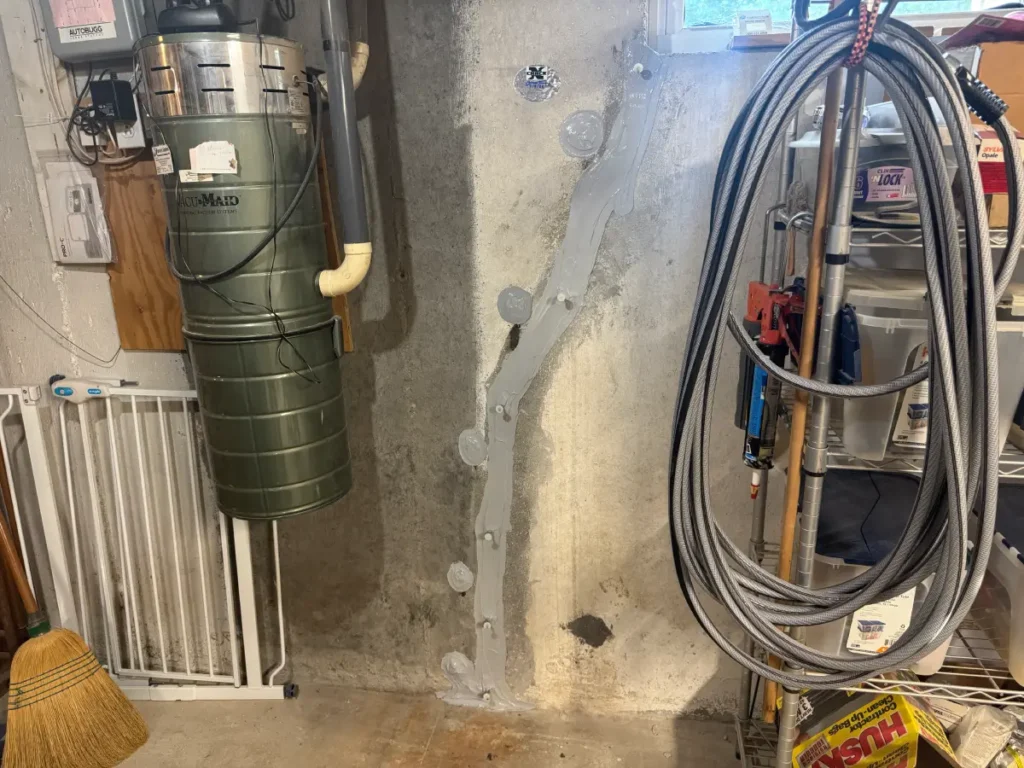

Delivering Lasting Results
Once the repair was complete, the homeowner had much more than another surface patch. The crack was sealed internally and reinforced structurally, creating a more durable defense against future leakage and re-cracking.
The completed foundation wall crack repair offers several long-term benefits:
- Reduced risk of water entering through the repaired crack
- Added reinforcement across the displaced concrete
- Protection against further deterioration around the damaged area
- A drier and more dependable basement environment
- Greater confidence in the condition of the home’s foundation
By choosing a professional injected and pinned repair, the homeowner gained peace of mind knowing that the underlying problem—not just its appearance—had been addressed.
Have a Foundation Crack in Your Manchester Home?
A patch that cracks, separates, or begins leaking again is usually a sign that the affected area needs a more complete evaluation. Wider or displaced cracks may require additional reinforcement beyond a basic surface repair.
If you have noticed a foundation wall crack, failed patch, damp area, or water seepage in your Manchester, NH, basement, contact CrackX. Our experienced team can inspect the damage, explain the available options, and recommend a repair designed for the specific conditions in your home.
